Office Cubicle Dimensions: Standard Sizes & Space Planning Guide
The right cubicle depends on your team, your workflow, and your floor plan. Here are the standard sizes — and how to figure out what actually fits.
Standard Office Cubicle Dimensions
Footprint
The floor area the full system occupies — panels and all. This is the number when someone says "6×8 cubicle."
Panel Height
A separate spec from footprint. Ranges 30" to 84". Controls privacy and acoustics independently of how large the cubicle is.
Work Surface
The desk inside the footprint. Typically 48"–72" on the long wall, plus a return on L-configs.
Aisle Clearance
OSHA requires 36" minimum between cubicle rows. This is a hard constraint that affects how many workstations actually fit.
Cubicle Sizes by Use

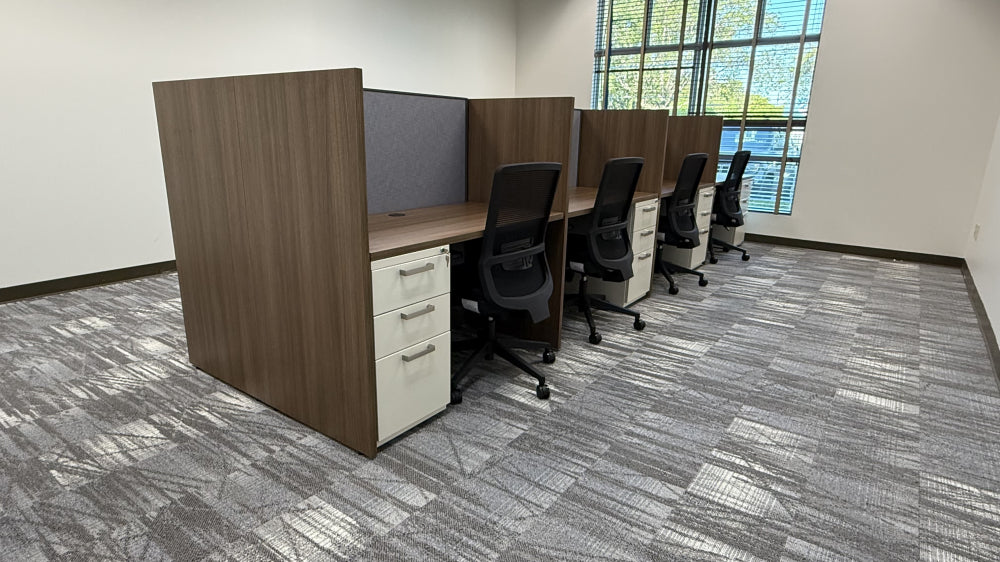

Call Center / High-Density
- 4×4 ft — Maximum density, shared resources
- 4×6 ft — Standard call center configuration
- 5×5 ft — High-density with more elbow room
Used when headcount is the priority and team members aren't at their desks for long stretches.
Standard Office
- 6×6 ft — Most common; work surface + storage + personal items
- 6×8 ft — Extra return for dual monitors or document-heavy roles
The go-to for general office staff. Balances density with enough surface to actually work.
Senior / Manager
- 8×8 ft — Team lead or senior individual contributor
- 8×10 ft — L-configuration, secondary seating possible
- 10×10 ft or larger — Director-level, accommodates guest seating
Large enough to have a conversation without leaving the cubicle. Not a private office, but close.
Cubicle Panel Heights: What Each Size Does
Panel height is independent of footprint. The same 6×8 cubicle can be ordered at any standard panel height — the choice affects privacy, acoustics, and how open the floor feels.
- 42" (3.5 ft) — Seated privacy only. You can see over the panels while standing. Collaborative, open feel. Good for team environments with high interaction.
- 50" (4.2 ft) — Seated and partially standing privacy. Common in open-plan offices where visibility above the panels is still desirable.
- 66" (5.6 ft) — Full seated and standing privacy. The standard choice for general office cubicles. Eye contact above the panels requires intent — which is usually what you want.
- 84" (7 ft) — Near-full privacy without drywall cost. Appropriate for roles requiring confidentiality, phone-intensive work, or noise isolation. Functions like a private office without the construction expense. If we need full privacy we can review demountable wall systems.
Most commercial panel systems can be ordered in any of these heights and mixed within the same installation. If part of your team needs 66" and part needs 50", that's a standard spec — not a custom order. We can also incorporate sound masking for acoustic value in your space.
Getting the Dimensions Right Is a Space Planning Problem
Cubicle dimensions are just the starting point. What actually fits depends on aisles (OSHA requires a minimum 36" circulation path), column placement, perimeter walls, window lines, and how your team moves through the space.
A 6×6 cubicle sounds straightforward until a support column eats 4 feet of your planned row — and the whole layout shifts. We draw the floor plan before we specify a single panel, so you know exactly what you're getting before anything is ordered. Check out our office layout guide for more info.
Common Questions About Cubicle Dimensions
6×6 and 6×8 feet are the most common in general offices. Call centers and high-density environments go smaller — 4×4 to 5×5 feet. Management and director-level workstations run 8×8 to 10×10 feet. The 6×6 is the default because it balances density with a usable work surface for most roles.
The rule of thumb is 45–75 square feet of gross floor space per workstation, accounting for aisles, columns, and circulation paths. Divide your usable square footage by 60 to get a rough count — a 5,000 sq ft floor typically fits 60–80 workstations depending on layout efficiency. A free space plan from KCOD will give you an accurate number before you commit to anything.
The extra 2 feet in a 6×8 typically goes to a return — a secondary surface that runs along the side wall of the cubicle. It's preferred for roles with dual monitors, design work, accounting, or anyone who uses a lot of surface space at once. The 6×6 works well for roles where the computer is the primary tool and a secondary work surface isn't a daily need.
65 inches is the most common choice for a general office — full privacy while seated, visible while standing. If your team is phone-intensive or needs acoustic separation, 77-inch panels reduce noise without the cost of a demountable wall. For collaborative environments where you want visibility and informal interaction, 42 or 53 inches keeps the floor feeling open. Mixed heights within the same installation are standard.
Cubicle dimensions refer to the footprint — the floor area the entire system occupies, including panels. The work surface (desktop) is a separate spec within that footprint. A 6×8 cubicle has panels forming the enclosure at those exterior dimensions; the desk surface inside typically runs 60 to 66 inches along the longer wall.
Yes. Most commercial panel systems from manufacturers like AIS, Versteel, and OFS are modular — panel widths and depths can be mixed to hit non-standard footprints. If you have an odd-shaped floor plate, perimeter columns, or a space that doesn't divide evenly into standard sizes, we size to fit. That's part of what the space planning process handles before you commit to an order.
